CUSTOM PTC HEATING FOR 3D PRINTERS
3D Printer Chamber Heater
Support stable chamber heating and help reduce warping with a PTC heater configured for your enclosed 3D printer. Match voltage, power, dimensions and airflow to your printer design, from prototype testing to OEM production.
Why Stable Heating Matters in a 3D Printer Chamber
In enclosed FDM 3D printers, PTC heaters can serve as an auxiliary chamber heat source for preheating before printing and, together with a temperature sensor and controller, help maintain the target chamber temperature during printing. User-shared modifications include heaters mounted in a rear corner or an upper rear corner of the enclosure. The mounting location, heater power, and target chamber temperature should be selected according to the printer structure and temperature control requirements.
Materials for a 3D Printer Heated Chamber
User-shared PTC chamber heater modifications include printing applications involving ASA, PA6, and PA12. Heating requirements vary by material grade and should follow the material supplier’s recommendations.
3D Printer Heated Chamber Temperature
Specify the target chamber temperature, acceptable temperature variation across the build area, and required warm-up time. These conditions should follow the material supplier’s recommendations and remain within the printer’s operating limits.
How PTC Chamber Air Heating Works
In a fan-assisted chamber air heating system, a PTC air heater works with a fan and temperature control. A built-in fan or a separate circulation fan moves air through the air heater and around the build area. The steps below describe this airflow-based configuration. Heater placement, outlet direction, return-air path, and sensor position affect temperature uniformity.
01
Chamber Air Intake
A fan draws cooler air from inside the printer enclosure into the heating unit, creating a continuous internal circulation path.
02
Self-Regulating PTC Heater Core
Air passes through the PTC heater core and carries warm air into the chamber. As the core heats up, rising resistance helps regulate power output.
03
Heated Air Circulation
Heated air flows back into the build chamber, helping reduce hot and cold zones and create a more uniform printing environment.
04
Heated Chamber Temperature Control
A temperature sensor and controller monitor the chamber temperature and adjust heater operation to maintain the required setpoint.
* PTC self-regulation does not replace chamber temperature sensing and control. Control and overheat protection components should be selected for the complete printer assembly.
3D Printer PTC Heater Options
Explore our PTC heating products for your 3D printer project. Contact us to discuss a suitable configuration based on your supply voltage, installation space, and heating requirements.
Heating Plate
- Voltage: 12V
- Max Temp: 200°C
- Size: 35 × 21 × 5 mm
- Custom size & temp available

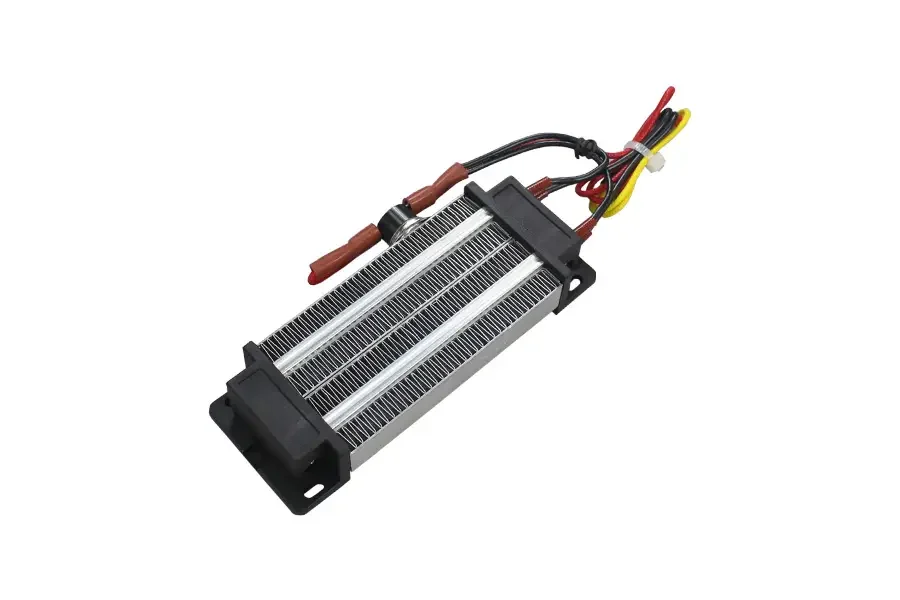

Insulated PTC Heater
- Voltage: 220V
- Wattage: 500W
- Size: 140 × 50.5 × 26 mm
- Overheat protection included

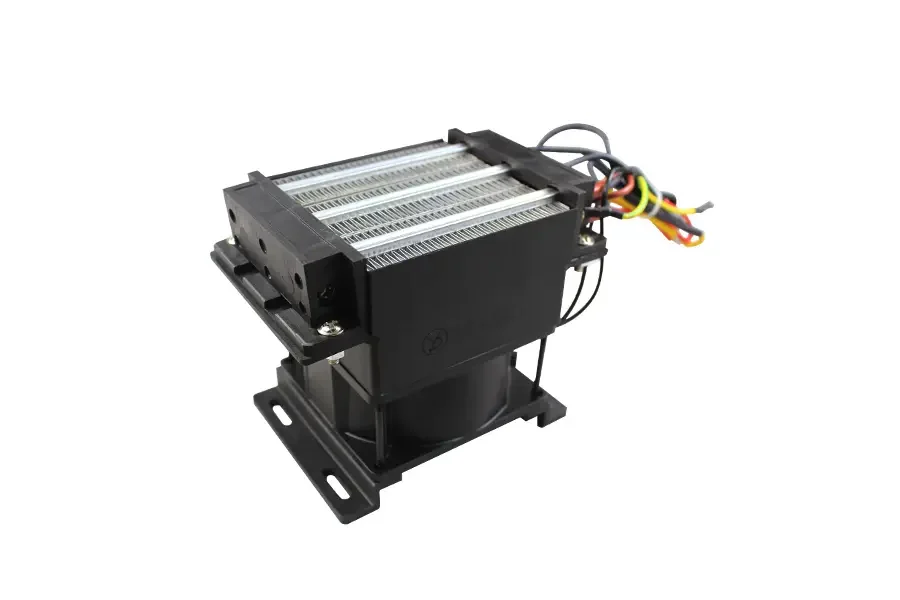

PTC Fan Heater
- Voltage: 220V
- Wattage: 400W
- Size: 125 × 80 × 101 mm
- Custom voltage & wattage available
Why Choose PTCYIDU for 3D Printer Chamber Heaters
Printer OEMs comparing a 3D printer chamber heater manufacturer or supplier need more than a standard catalog model. Established in 2002 and based in Shanghai, China, PTCYIDU helps evaluate heater size, voltage, mounting, wiring, and airflow for integration into enclosed 3D printers.
Factory Support for Custom 3D Printer Heaters
Customize voltage, wattage, dimensions, wiring, connectors, mounting structures, and airflow to fit your printer design. Our engineers respond to project inquiries within 10 hours to support the requirements review.
Heaters with Matching Control Components
Source temperature controllers and sensors alongside the heater. We help evaluate heater configuration, airflow, and control requirements together for integration into your printer chamber.
OEM and Wholesale Heater Manufacturing
Standard products start at 1 unit. Custom production orders start at 50 units, or 100 units when new tooling is required. Samples are available for evaluation before committing to production.
3D Printer Chamber Heater FAQs
Find answers to common questions about selecting and customizing a 3D printer chamber heater.
How do I select the right heater power?
Select heater power based on chamber volume, target temperature, minimum ambient temperature, insulation, airflow, heat loss, and required warm-up time. Wattage alone does not determine chamber performance. Share these conditions so we can evaluate a suitable configuration for testing in your printer.
What chamber temperature can a PTC heater maintain?
The achievable chamber temperature depends on heater output and the complete printer design, including chamber volume, insulation, ambient temperature, airflow, ventilation, and system control. Heater surface temperature is different from chamber air temperature. Validate the target temperature, warm-up time, and temperature variation in the intended enclosure.
Does a PTC chamber heater need a temperature controller?
Yes, for a specified chamber temperature, use a sensor and controller selected for the printer design. The PTC element helps regulate its own power output, but does not measure air temperature around the printed part. Overheat protection should also be selected for the final assembly.
Can a 3D printer chamber heater be customized?
Yes. Heater dimensions, voltage, wattage, fan configuration, mounting brackets, lead wires, and connectors can be evaluated against your enclosure layout. Share the available installation space and airflow path so we can review a suitable configuration.
What information is needed to recommend a heater for my 3D printer?
Send an enclosure drawing or internal photo showing the build volume, heater location, airflow path, nearby electronics, and available mounting space. Include the supply voltage, target chamber temperature, minimum ambient temperature, insulation details, and preferred warm-up time. If available, add acceptable temperature variation and expected order quantity.
Can I request samples before placing a wholesale 3D printer chamber heater order?
Yes. Up to three free samples are available, with shipping paid by the customer. Share the model or specifications you want to test so we can confirm sample availability and the delivery schedule. Custom sample requirements and production lead times are confirmed for each project before ordering.
Get in touch
Request a Custom 3D Printer Chamber Heater
Send us your enclosure drawing and heating requirements. Our team will review your application and recommend a PTC heater configuration for prototype testing.
